- Place of Origin: shanghai
- Brand Name: TAYOR
- Model Number: CNCD/SG

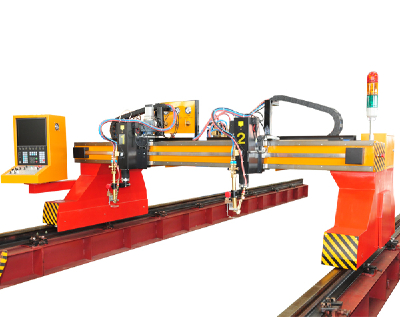

CNC Flame Cutting Machine
Single Drive/Double Drive
2 Flame Torch Station
6-120mm Cutting Thickness (Max 300mm)
Model :CNCDG3000/CNCSG3000/CNCSG4000/CNCSG5000
Oxy-fule Metal Plate Cutting
Offshore Industry
Metal Fabrication Processing
Shipbuilding
Steel Construction
H beam Processing
- Place of Origin: shanghai
- Brand Name: TAYOR
- Model Number: CNCD/SG
Model | CNCD/SG | |||||
Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 800mm less than width |
Effective Cutting Width (mm) | 3200 | 4200 | 5200 | 6200 | 7200 | Can be customized |
Effective Cutting Length (m) | 2m less than track length | |||||
Cutting Thickness(mm) | Plasma:1-80 | |||||
Cutting Mode | Plasma | |||||
Drive Motor Number | Servo motor, Dual-side | |||||
Cutting Torch Number | Customization | |||||
Driving Motor | Panasonic, Mitsubishi | |||||
NC Controller | SJTU-SK, Micro EDGE pro, EDGE pro, KP, BURNY | |||||
Plasma Power | Thermadyne, Kjellberg, Hypertherm, ESAB | |||||
Programming software | FASTCAM | |||||
Working temperature | - 10°C -45°C | |||||
Humidity | <90%, no condensation | |||||
Surroundings | Ventilation, no big shake | |||||
Power voltage | 3×380V±10% or up by user’s local condition | |||||
